Product Details:
|

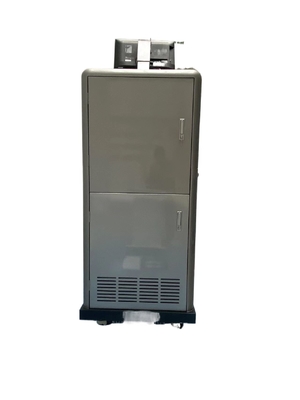

| Color: | Metallic Silver | Equipment Composition: | Cport, Headrest, Bodyontrol Cabinet, Bed Body (including Airbag), Knee Sup Fixing Belt, External TV, Workbench, And Mobile Lateral Force Device. |
|---|---|---|---|
| Scope Of Application: | Scoliosis And Lumbar Spondylosis | Treatment Data: | Can Be Saved |

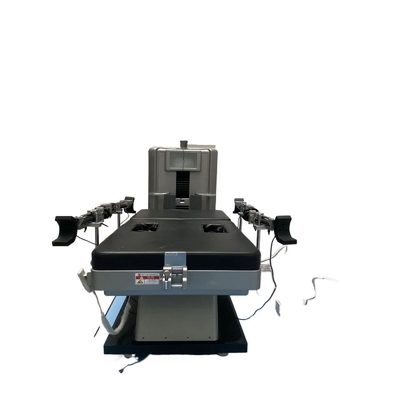

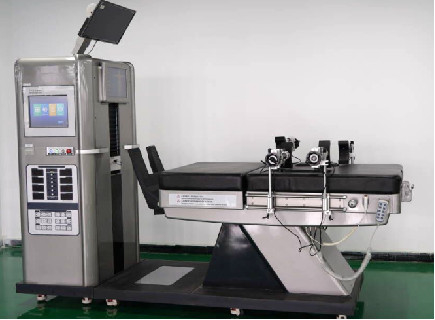

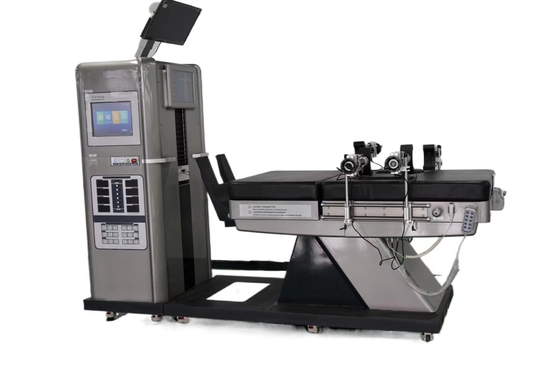

The three-dimensional Spinal decompression machine and orthopedic equipment for disc herniation
Product Introduction
The three-dimensional decompression and orthopedic system of the alien capsule is jointly developed by Zhengzhou Feilong Medical Equipment Co., Ltd. and Yi Xie -director of the Rehabilitation Medical Engineering (Research Center for Correction and Sports Rehabilitation of Abnormal Foot Ridge) of the Fifth Affiliated Hospital of Zhengzhou University. The system innovatively uses the alternating bi-periodic three-dimensional decompression and correction technology to treat spinal three-dimensional structural abnormalities (for example, scoliosis, changes in physiological curvature of spine, lumbar disc herniation and other spinal osteopathy) from the longitudinal, transverse and axial directions to achieve subversive curative effect.For example, for severe scoliosis that does not meet the surgical treatment standard, it can be corrected to below 10° or straightened through two or three courses of treatment, and then the spine biomechanical appliance is used to maintain its curative effect. Through such a treatment scheme, the effectiveness of conservative treatment for scoliosis and other spinal structural abnormalities is greatly improved. The structural abnormality of spine is successfully treated conservatively, which greatly reduces the burden of family and society and the medical risks borne by individuals. FYZ-9820 consists of control cabinet, bed body (including airbag), knee bracket, headrest, body fixing belt, external TV and workbench are composed of mobile lateral force devices.
Product effect verification
Researched by the Fifth Affiliated Hospital of Zhengzhou University, Rehabilitation Medicine Engineering Podiatry and Sports Rehabilitation Center.
Treatment process
Individualized orthosis can be implemented for patients with different types of scoliosis. Be positioned for sagittal plane, decompression and orthopedic Be positioned for coronal plane, decompression orthopedic Be positioned for horizontal plane Decompression orthopedic.
Main specifications and technical parameters
| Traction range | 0N~666N |
| Patient weight | 30Kg~150Kg |
| Safe working load of treatment bed | 180Kg |
| Power supply | AC220V+22V, 50Hz+1Hz |
| UPS specifications | 2KVA |
| Rated input power | 500VA |
| Whole machine | length:2900mm width:1720mm height:1900mm(The TV is not included) tolerance:+100mm |
| Bed body | bed body length:1700mm width:820mm tolerance:+100mm |
| Bed height | 1035mm tolerance:+100mm |
Instructions for use
1.Startup Connect the product power cord to the mains, turn on the ship type switch,hold down the UPS power for 5 seconds to turn on the UPS power, and then turn on the switch next to the touchscreen computer to start three-dimensional decompression and orthopedic system. Press the "START SWITCH" button to activate the servo motor system and lumbar adjustment system, as well as various other functions. 2.Height and weight
Guide the patient to measure and record the height and weight through the weighing platform, input the system software, and check again whether it is consistent with the actual height and weight of the patient. 3 Preparation for Treatment
Fix the patient:adjust and fix waist fixation band and chest fixation band;place the head rest and knee support;connecting the Traction Belt. 4.Input of treatment information Input the patient's weight, the system will automatically give the maximum traction force according to the input weight. Click the increase or decrease button to adjust it as needed, and press the button once to increase or decrease IN.
Set the corresponding treatment Angle and click "Save".
Intermittent phase maintenance force is half of the maximum setting force. 5.Select existing patients
For existing patients in the database, you can skip the "New patient file" interface and click the "Treatment" button on the
main interface to directly enter the interface of selecting patients. 6 Query of treatment records
Click the query button and input the patient's corresponding information to query the patient's treatment record. 7 Initiating Treatment
Click the "Start treatment" button to start treatment.
Click the "Stop" button at any time to terminate the treatment, and click the "continue" button to continue. 8 End of Treatment
At the end of the treatment, the spinal positioning cycle decompression traction system treatment software will display a
"treatment is over" prompt at the top of the screen. 9 Print patient records
The patient record printout contains the treatment performed by an individual patient and the treatment performed during the phase time.
Comparison of decompression system orthopedic version and conventional traction
| Compared projects | The decompression system | Traditional traction |
| Pattern of force | Continuous and controllable dynamic patterns | Continuous or intermittent linear patterns |
| Sensilla-Pressure relief feedback system | Yes, it helps eliminate muscle resistance | No |
| Paravertebral muscle contraction resistance | Produce almost nothing | Often produce |
| The point of action of the force | Accurate localization of the diseased diso | On the entire spine |
| The intervertebral disc pressure drops | Continuous negative pressure attainable -200mmHg |
In general it is difficult to achieve negative pressure |
| Intervertebral space height increased | Significantly higher | Not obvious |
| The treatment results | The protrusion can be recovered to achieve the purpose of nutrition of the intervertebral dixc | Only by forcing the patient to brake, relieve the patient's pain |
| Patient comfort level | Very high | Poor |
| Clinical Research status | More global studies confirm this | Fewer systematic studies have been reported |
| Orthopaedic dimension | It can realize three-dimensional correction of spine | No |
Treatment cycle
Treatment with three-dimensional decompression and orthopedic system is once daily for two weeks, then reduces to three times a week as needed. The three-dimensional decompression and orthopedic system is used for 28-45 minutes for each treatment. After each distraction, cold compresses or electrical stimulation are used to assist in restoring paraspinal muscle strength after treatment.
